  • WIDIA/KENNAMETAL VSM11D022Z03A20XD11L110 90.0° Milling Cutter 0.860 Cutter Diameter Cylindrical 0.787

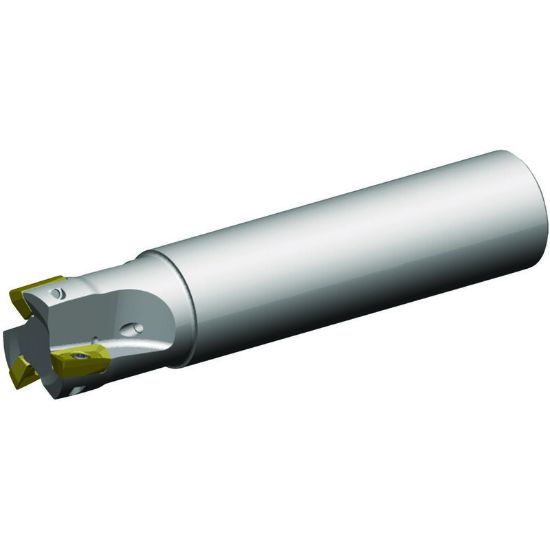

Picture of WIDIA/KENNAMETAL VSM11D022Z03A20XD11L110 90.0° Milling Cutter 0.860 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL VSM11D022Z03A20XD11L110 90.0° Milling Cutter 0.860 Cutter Diameter Cylindrical 0.787

ANSI: VSM11D022Z03A20XD11L110

ISO: VSM11D022Z03A20XD11L110

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6171502
Delivery date: 3-5 days
$283.87

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 0.8600 21.84MM
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 11
Overall Len 4.3310 110.01MM
Flutes/Inserts 3
Length Of Cut 0.4540 11.53MM
Dimension Description 0.860 x 0.787 x 0.454 x 4.331
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style XD
Hand R/L Right
