  • WIDIA/KENNAMETAL VSM11D020Z03A20XD11L170 90.0° Milling Cutter 0.780 Cutter Diameter Cylindrical 0.787

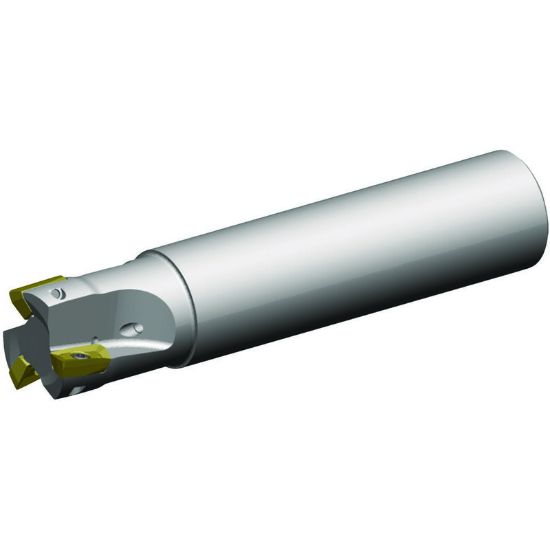

Picture of WIDIA/KENNAMETAL VSM11D020Z03A20XD11L170 90.0° Milling Cutter 0.780 Cutter Diameter Cylindrical 0.787

WIDIA/KENNAMETAL VSM11D020Z03A20XD11L170 90.0° Milling Cutter 0.780 Cutter Diameter Cylindrical 0.787

ANSI: VSM11D020Z03A20XD11L170

ISO: VSM11D020Z03A20XD11L170

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416703
Delivery date: 3-5 days
$288.61

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Application Roughing, Semi Finishing
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Pennsylvania
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Length Of Cut 0.4549 11.55MM
Machine Side Connection Type Cylindrical
Insert Size Ic 11
Tool Material Steel
Cutter Dia 0.7800 19.81MM
Overall Len 6.6930 170.00MM
Flutes/Inserts 3
Dimension Description 0.780 x 0.787 x 0.455 x 6.693
Machine Side Connection Size 0.7874 20.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
