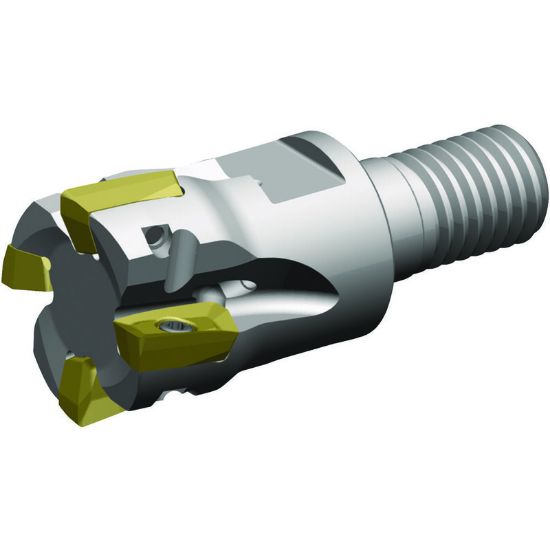

Picture of WIDIA/KENNAMETAL VSM11D016Z02M08XD11 90.0° Milling Cutter 0.620 Cutter Diameter Screw On M08

WIDIA/KENNAMETAL VSM11D016Z02M08XD11 90.0° Milling Cutter 0.620 Cutter Diameter Screw On M08

ANSI: VSM11D016Z02M08XD11

ISO: VSM11D016Z02M08XD11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5417011
Delivery date: 3-5 days
$210.47

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Insert Size Ic 11
Overall Len 1.6810 42.70MM
Length Of Cut 0.4540 11.53MM
Machine Side Connection Type Screw On
Machine Side Connection Size M08
Tool Material Steel
Flutes/Inserts 2
Cutter Dia 0.6200 15.75MM
Cutting & Machining Properties
Insert Style XD
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
