  • WIDIA/KENNAMETAL VSM11D016Z02A16XD11L170 90.0° Milling Cutter 0.630 Cutter Diameter Cylindrical 0.629

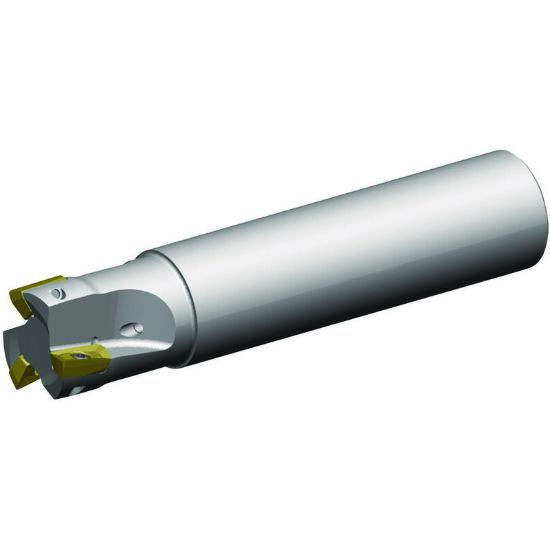

Picture of WIDIA/KENNAMETAL VSM11D016Z02A16XD11L170 90.0° Milling Cutter 0.630 Cutter Diameter Cylindrical 0.629

WIDIA/KENNAMETAL VSM11D016Z02A16XD11L170 90.0° Milling Cutter 0.630 Cutter Diameter Cylindrical 0.629

ANSI: VSM11D016Z02A16XD11L170

ISO: VSM11D016Z02A16XD11L170

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416700
Delivery date: 3-5 days
$270.59

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Dimension Description 0.630 x 0.630 x 0.454 x 6.693
Overall Len 6.6930 170.00MM
Insert Size Ic 11
Machine Side Connection Size 0.6299 16.00MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Cutter Dia 0.6300 16.00MM
Flutes/Inserts 2
Length Of Cut 0.4540 11.53MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
