  • WIDIA/KENNAMETAL VSM11D016Z02A16XD11L100 90.0° Milling Cutter 0.620 Cutter Diameter Cylindrical 0.629

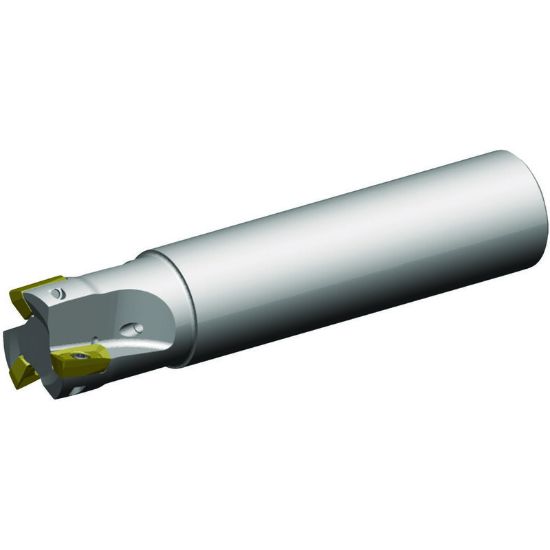

Picture of WIDIA/KENNAMETAL VSM11D016Z02A16XD11L100 90.0° Milling Cutter 0.620 Cutter Diameter Cylindrical 0.629

WIDIA/KENNAMETAL VSM11D016Z02A16XD11L100 90.0° Milling Cutter 0.620 Cutter Diameter Cylindrical 0.629

ANSI: VSM11D016Z02A16XD11L100

ISO: VSM11D016Z02A16XD11L100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID5416633
Delivery date: 3-5 days
$258.56

Features And Benefits

True 90° capability. Increased ramping capability. Superior wall and surface finish. Effective internal coolant feature, precisely reaching the cutting edge.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Slot Milling, Pocket Milling, Face Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 3.3970 86.28MM
Dimension Description 0.620 x 0.630 x 0.454 x 3.397
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Insert Size Ic 11
Cutter Dia 0.6200 15.75MM
Flutes/Inserts 2
Length Of Cut 0.4540 11.53MM
Cutting & Machining Properties
Insert Style XD
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
