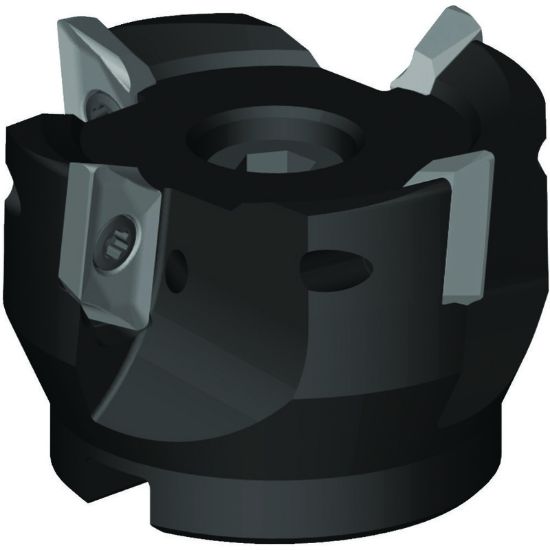

Picture of WIDIA/KENNAMETAL VHSC300Z05S100XD16 90.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL VHSC300Z05S100XD16 90.0° Milling Cutter 3.000 Cutter Diameter Face Mill 1.000

ANSI: VHSC300Z05S100XD16

ISO: VHSC300Z05S100XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425432
Delivery date: 3-5 days
$646.76

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min) MRR at machining Aluminum components. Only one cutter body style to load inserts with nose radii from .008" (0.2mm) up to .236" (6mm). Consistent axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm).

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Side Milling, Pocket Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Length Of Cut 0.6300 16.00MM
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 3.0000 76.20MM
Tool Material Steel
Overall Len 1.9690 50.01MM
Flutes/Inserts 5
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
