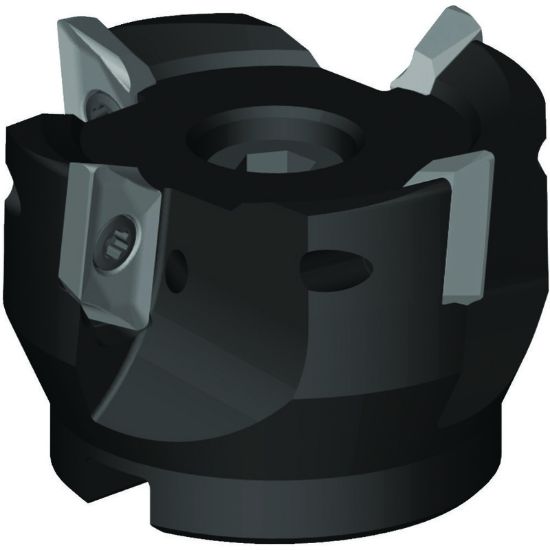

Picture of WIDIA/KENNAMETAL VHSC250Z04S100XD16 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

WIDIA/KENNAMETAL VHSC250Z04S100XD16 90.0° Milling Cutter 2.500 Cutter Diameter Face Mill 1.000

ANSI: VHSC250Z04S100XD16

ISO: VHSC250Z04S100XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425431
Delivery date: 3-5 days
$563.20

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min) MRR at machining Aluminum components. Only one cutter body style to load inserts with nose radii from .008" (0.2mm) up to .236" (6mm). Consistent axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm).

Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Side Milling, Ramp Milling, Slot Milling, Face Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.9685 50.00MM
Flutes/Inserts 4
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Length Of Cut 0.6300 16.00MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
