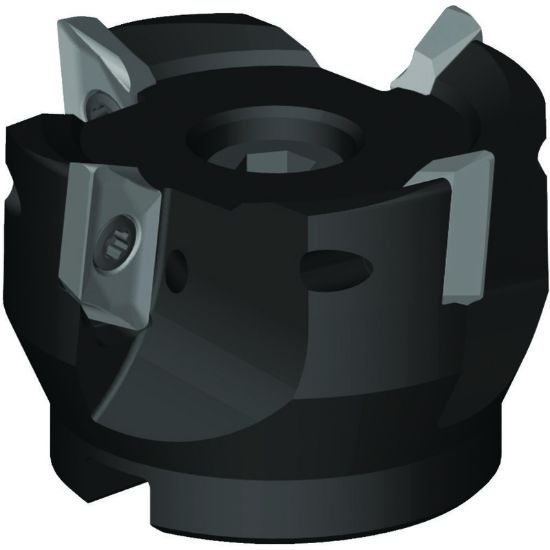

Picture of WIDIA/KENNAMETAL VHSC200Z04S075XD16 90.0° Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

WIDIA/KENNAMETAL VHSC200Z04S075XD16 90.0° Milling Cutter 2.000 Cutter Diameter Face Mill 0.750

ANSI: VHSC200Z04S075XD16

ISO: VHSC200Z04S075XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425430
Delivery date: 3-5 days
$508.24

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min) MRR at machining Aluminum components. Only one cutter body style to load inserts with nose radii from .008" (0.2mm) up to .236" (6mm). Consistent axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm).

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Pocket Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Tool Material Steel
Overall Len 1.5748 40.00MM
Length Of Cut 0.6300 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
