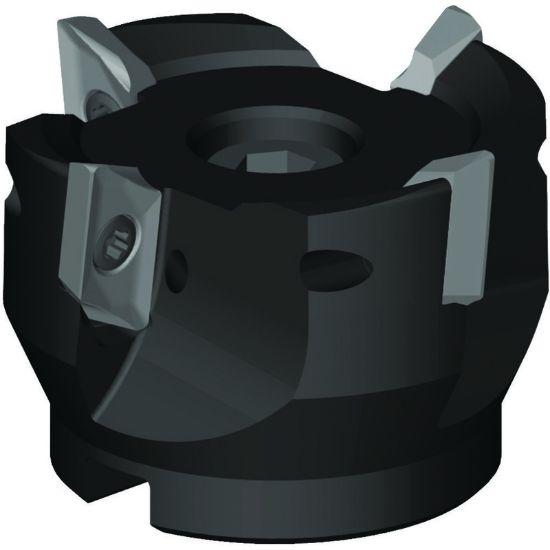

Picture of WIDIA/KENNAMETAL VHSC150Z03S050XD16 90.0° Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

WIDIA/KENNAMETAL VHSC150Z03S050XD16 90.0° Milling Cutter 1.500 Cutter Diameter Face Mill 0.500

ANSI: VHSC150Z03S050XD16

ISO: VHSC150Z03S050XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425429
Delivery date: 3-5 days
$473.91

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min) MRR at machining Aluminum components. Only one cutter body style to load inserts with nose radii from .008" (0.2mm) up to .236" (6mm). Consistent axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm).

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Overall Len 1.5748 40.00MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 3
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 0.6300 16.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Insert Style XD
Hand R/L Right
