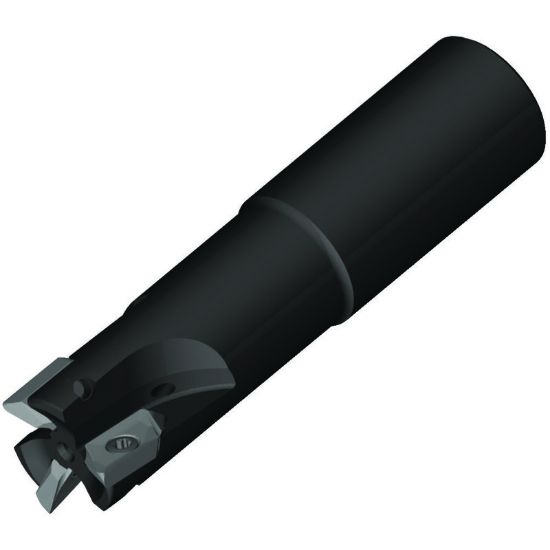

Picture of WIDIA/KENNAMETAL VHSC150Z03C150XD16 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.500

WIDIA/KENNAMETAL VHSC150Z03C150XD16 90.0° Milling Cutter 1.500 Cutter Diameter Cylindrical 1.500

ANSI: VHSC150Z03C150XD16

ISO: VHSC150Z03C150XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425428
Delivery date: 3-5 days
$558.61

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min) MRR at machining Aluminum components. Only one cutter body style to load inserts with nose radii from .008" (0.2mm) up to .236" (6mm). Consistent axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm).

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Side Milling, Face Milling, Ramp Milling, Slot Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 6.0300 153.16MM
Insert Size Ic 16
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Dimension Description 1.500 x 1.500 x 0.630 x 6.030
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Length Of Cut 0.6300 16.00MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
