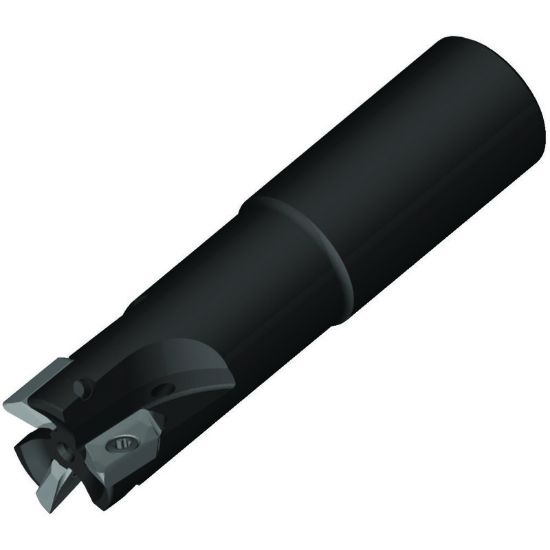

Picture of WIDIA/KENNAMETAL VHSC125Z03C125XD16 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VHSC125Z03C125XD16 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: VHSC125Z03C125XD16

ISO: VHSC125Z03C125XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425427
Delivery date: 3-5 days
$524.28

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min MRR at machining Aluminum components. Only one cutter body style to load insert with nose radii from .008" (0.2mm) up to .236" (6mm). Consistant axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm). Best in class solution for thin-walled and stepping down machining.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Made In USA No
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Overall Len 5.2800 134.11MM
Dimension Description 1.250 x 1.250 x 0.630 x 5.280
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Length Of Cut 0.6300 16.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
