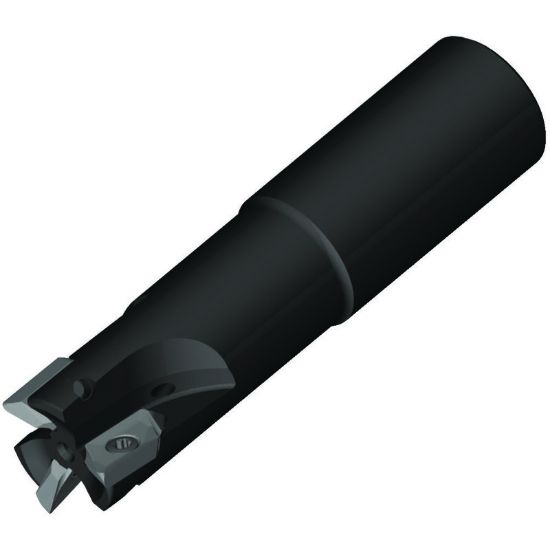

Picture of WIDIA/KENNAMETAL VHSC125Z02C125XD16 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

WIDIA/KENNAMETAL VHSC125Z02C125XD16 90.0° Milling Cutter 1.250 Cutter Diameter Cylindrical 1.250

ANSI: VHSC125Z02C125XD16

ISO: VHSC125Z02C125XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425426
Delivery date: 3-5 days
$497.93

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min MRR at machining Aluminum components. Only one cutter body style to load insert with nose radii from .008" (0.2mm) up to .236" (6mm). Consistant axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm). Best in class solution for thin-walled and stepping down machining.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Pennsylvania
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Dimension Description 1.250 x 1.250 x 0.630 x 5.280
Insert Size Ic 16
Machine Side Connection Type Cylindrical
Flutes/Inserts 2
Overall Len 5.2799 134.11MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Length Of Cut 0.6300 16.00MM
Cutting & Machining Properties
Insert Style XD
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
