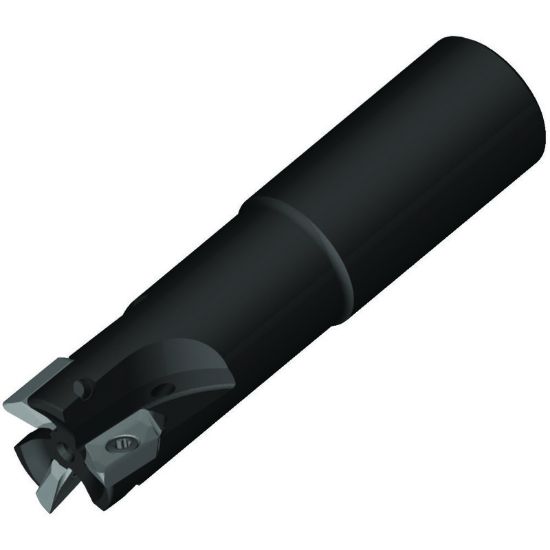

Picture of WIDIA/KENNAMETAL VHSC100Z02C100XD16 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

WIDIA/KENNAMETAL VHSC100Z02C100XD16 90.0° Milling Cutter 1.000 Cutter Diameter Cylindrical 1.000

ANSI: VHSC100Z02C100XD16

ISO: VHSC100Z02C100XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425425
Delivery date: 3-5 days
$465.89

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min MRR at machining Aluminum components. Only one cutter body style to load insert with nose radii from .008" (0.2mm) up to .236" (6mm). Consistant axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm). Best in class solution for thin-walled and stepping down machining.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Length Of Cut 0.6300 16.00MM
Tool Material Steel
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Dimension Description 1.000 x 1.000 x 0.630 x 5.030
Overall Len 5.0300 127.76MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
