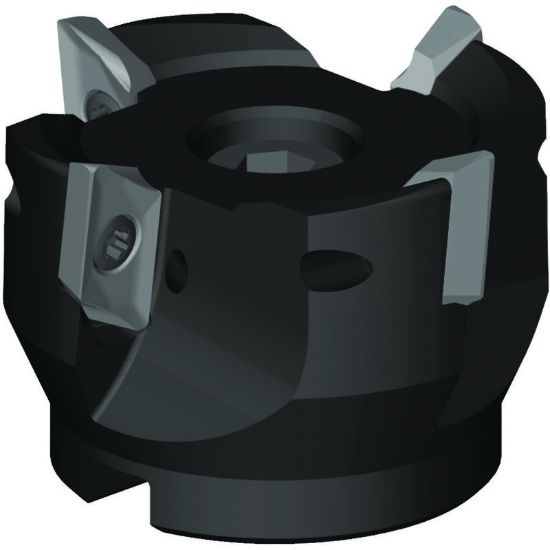

Picture of WIDIA/KENNAMETAL VHSC063Z04S22XD16 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL VHSC063Z04S22XD16 90.0° Milling Cutter 2.480 Cutter Diameter Face Mill 0.866

ANSI: VHSC063Z04S22XD16

ISO: VHSC063Z04S22XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425293
Delivery date: 3-5 days
$563.20

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min) MRR at machining Aluminum components. Only one cutter body style to load inserts with nose radii from .008" (0.2mm) up to .236" (6mm). Consistent axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm).

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 2.4803 63.00MM
Tool Material Steel
Overall Len 1.7717 45.00MM
Length Of Cut 0.6300 16.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
