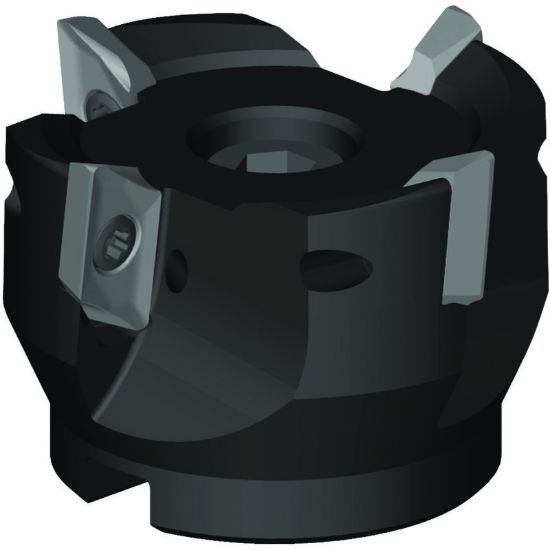

Picture of WIDIA/KENNAMETAL VHSC050Z04S22XD16 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

WIDIA/KENNAMETAL VHSC050Z04S22XD16 90.0° Milling Cutter 1.969 Cutter Diameter Face Mill 0.866

ANSI: VHSC050Z04S22XD16

ISO: VHSC050Z04S22XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425292
Delivery date: 3-5 days
$508.24

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min) MRR at machining Aluminum components. Only one cutter body style to load inserts with nose radii from .008" (0.2mm) up to .236" (6mm). Consistent axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm).

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Pennsylvania
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Insert Size Ic 16
Tool Material Steel
Cutter Dia 1.9690 50.01MM
Overall Len 1.7720 45.01MM
Length Of Cut 0.6300 16.00MM
Cutting & Machining Properties
Insert Style XD
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
