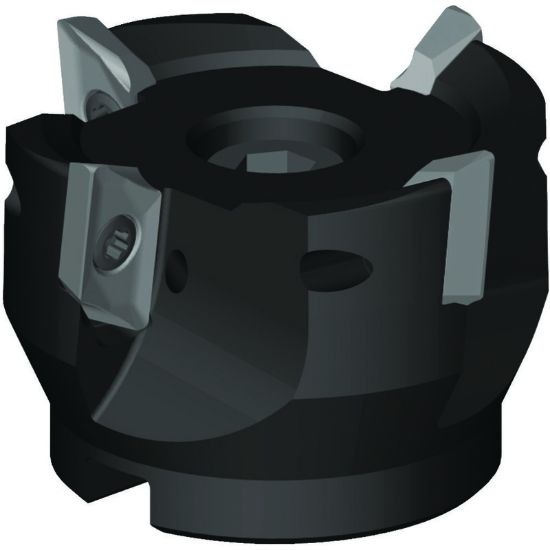

Picture of WIDIA/KENNAMETAL VHSC040Z03S16XD16 90.0° Milling Cutter 1.575 Cutter Diameter Face Mill 0.629

WIDIA/KENNAMETAL VHSC040Z03S16XD16 90.0° Milling Cutter 1.575 Cutter Diameter Face Mill 0.629

ANSI: VHSC040Z03S16XD16

ISO: VHSC040Z03S16XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425291
Delivery date: 3-5 days
$473.91

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min) MRR at machining Aluminum components. Only one cutter body style to load inserts with nose radii from .008" (0.2mm) up to .236" (6mm). Consistent axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm).

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.6299 16.00MM
Length Of Cut 0.6300 16.00MM
Flutes/Inserts 3
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Insert Size Ic 16
Overall Len 1.7720 45.01MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
