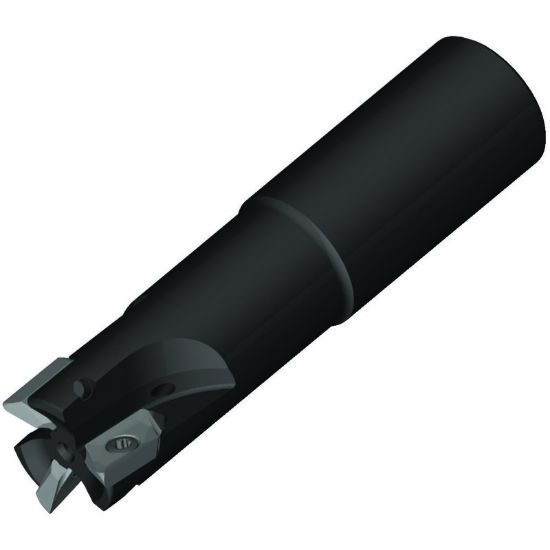

Picture of WIDIA/KENNAMETAL VHSC025Z02A25XD16 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

WIDIA/KENNAMETAL VHSC025Z02A25XD16 90.0° Milling Cutter 0.984 Cutter Diameter Cylindrical 0.984

ANSI: VHSC025Z02A25XD16

ISO: VHSC025Z02A25XD16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6425258
Delivery date: 3-5 days
$465.89

Features And Benefits

Productivity booster up to 525in3/min (8600cm3/min MRR at machining Aluminum components. Only one cutter body style to load insert with nose radii from .008" (0.2mm) up to .236" (6mm). Consistant axial gage length with insert nose radii from .008" (0.2mm) up to .236" (6mm). Best in class solution for thin-walled and stepping down machining.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 5.1570 130.99MM
Dimension Description 0.984 x 0.984 x 0.630 x 5.157
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Length Of Cut 0.6300 16.00MM
Insert Size Ic 16
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XD
Hand R/L Right
Coolant Thru Yes
