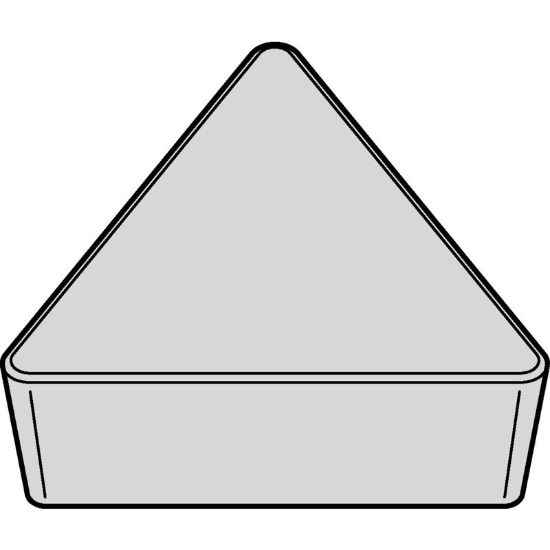

WIDIA/KENNAMETAL TPU322 TN4000 Insert Triangle TiN + TiCN + Al2O3 0.031 Corner Radius

ANSI: TPU322 TN4000

ISO: TPUN160308 TN4000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2562765
Delivery date: 3-5 days
$7.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD, good for steel and stainless steel light interupted

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Insert/Tool Insert
Made In USA No
Insert Application Finishing, Semi Finishing
Insert Type Positive
Grade TN4000
Coating TiN + TiCN + Al2O3
Application Turning Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Insert Size Ic 16 "32"
Cutting & Machining Properties
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Cutting Edge Mat Carbide
