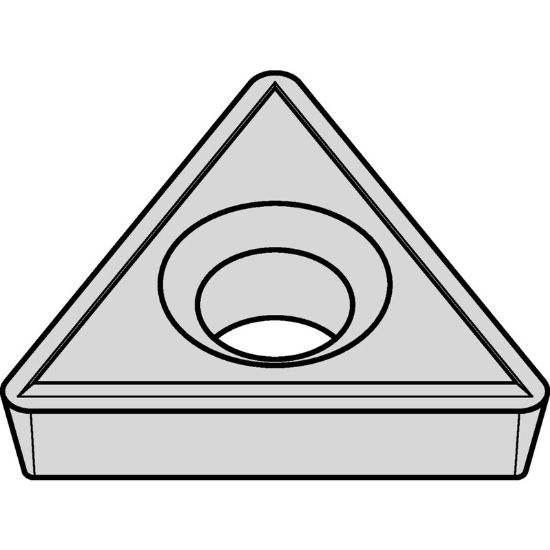

WIDIA/KENNAMETAL TPHH321 CG6 Insert Triangle TiC + TiCN + TiN 0.016 Corner Radius

ANSI: TPHH321 CG6

ISO: TPHH160304 CG6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID2821705
Delivery date: 3-5 days
$13.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD, for steels, stainless steels, and cast irons.

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Coating TiC + TiCN + TiN
Insert Application Finishing, Semi Finishing
Insert Type Positive
Insert/Tool Insert
Made In USA Yes
Shipping State Pennsylvania
Grade CG6
Package Size 10
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Cut Rating <48HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Insert Size Ic 16 "32"
Cutting & Machining Properties
Insert Style TP
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Triangle
