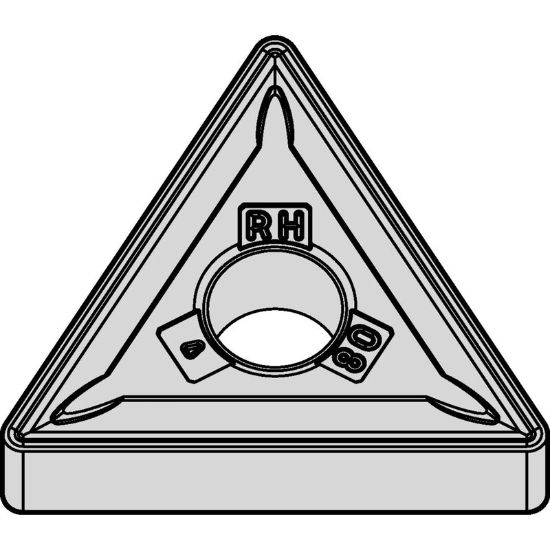

WIDIA/KENNAMETAL TNMG543RH WP35CT Insert Triangle TiN + TiCN + Al2O3 + TiOCN 0.047 Corner Radius

ANSI: TNMG543RH WP35CT

ISO: TNMG270612RH WP35CT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4171729
Delivery date: 3-5 days
$13.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Coated carbide. MT-CVD/CVD — TiN-TiCN-Al2O3-TiOCN. Proven performance in roughing and heavy roughing operations on variety of steels and also stainless steel in wet or dry condition. Works equally well on surfaces with uneven stock. Interrupted, non-interrupted cuts.

Products specifications
Attribute name Attribute value
General Product Information
Grade WP35CT
Insert Type Negative
Insert Application Roughing, Medium
Made In USA No
Coating TiN + TiCN + Al2O3 + TiOCN
Insert/Tool Insert
Application Turning Insert
Package Size 10
Shipping State Pennsylvania
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 27 "54"
Cutting & Machining Properties
Insert Style TN
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Triangle
