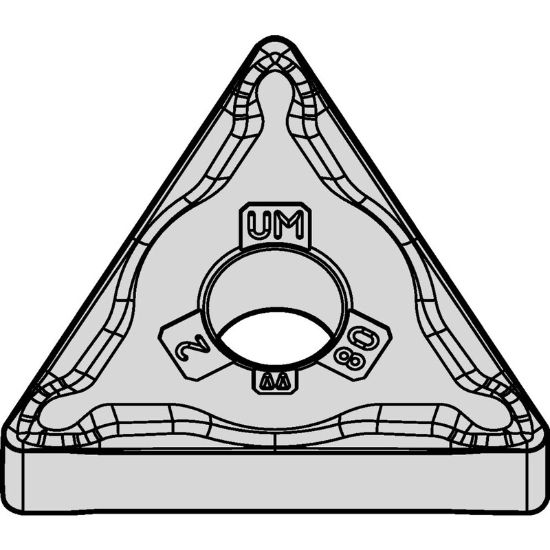

WIDIA/KENNAMETAL TNMG433UM WM25CT Insert Triangle TTiN + TiCN + Al2O3 + TiOCN 0.047 Corner Radius

ANSI: TNMG433UM WM25CT

ISO: TNMG220412UM WM25CT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4172402
Delivery date: 3-5 days
$6.24

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Coated carbide. MT-CVD/CVD — TTiN-TiCN-Al2O3-TiOCN. Good balance of wear resistance and toughness properties. Ideal Choice for medium/general purpose machining of austenitic stainless steels.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Pennsylvania
Insert/Tool Insert
Coating TTiN + TiCN + Al2O3 + TiOCN
Grade WM25CT
Insert Application Medium, Semi Finishing
Application Turning Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Insert Size Ic 22 "43"
Cut Rating Stainless
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
