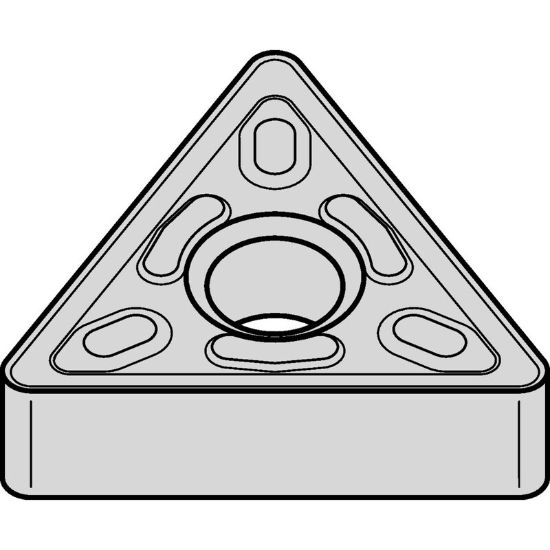

WIDIA/KENNAMETAL TNMG3334PTN30M Insert Triangle TiN + TiCN + Al2O3 0.047 Corner Radius

ANSI: TNMG3334PTN30M

ISO: TNMG1604124PTN30M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4165879
Delivery date: 3-5 days
$6.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD, for stainless steel or steel, tough grade.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Medium
Coating TiN + TiCN + Al2O3
Grade TN30M
Insert Type Negative
Made In USA No
Insert/Tool Insert
Shipping State Pennsylvania
Application Turning Insert
Package Size 10
Dimensional Specifications
Insert Size Ic 16 "33"
Corner Radius 0.0470 1.19MM
Cut Rating <40HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TN
Cutting Edge Mat Carbide
