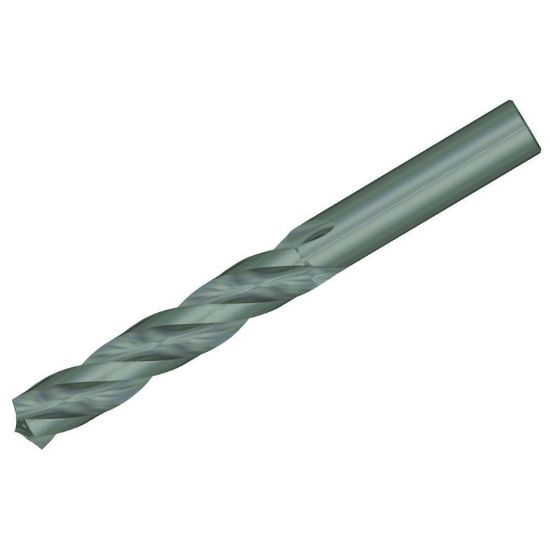

WIDIA/KENNAMETAL TDT752A04000 SC Drill 4MM/.1575/ 5XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6197140
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Pennsylvania
Grade WN15HD
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Min 0.1574 4.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.9134 74.00MM
Included Angle 130°
Machine Side Connection Size 0.2362 6.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.1574 4.00MM
Flutes/Inserts 3
Dia Deep 5.0XD
Flute Length 1.1420 29.01MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
