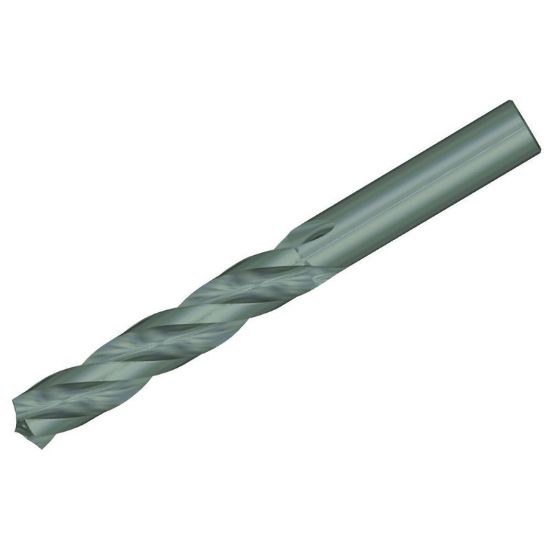

WIDIA/KENNAMETAL TDT751A10000 SC Drill 10MM/.3937/ 3XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6197134
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Dilling, Drilling Flood Coolant
Shipping State Pennsylvania
Package Size 1
Made In USA No
Grade WN15HD
Dimensional Specifications
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.5039 89.00MM
Included Angle 130°
Machine Side Connection Size 0.3937 10.00MM
Cut Dia Min 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Dia Deep 3.0XD
Cut Rating Aluminum, Brass, Plastic, Copper
Flutes/Inserts 3
Flute Length 1.3780 35.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
