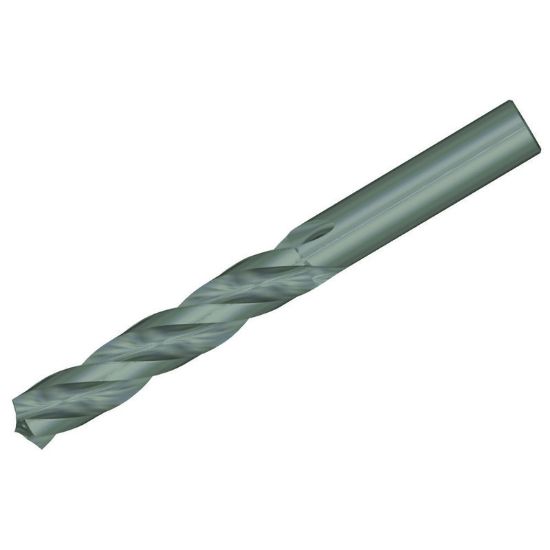

WIDIA/KENNAMETAL TDT751A08000 SC Drill 8MM/.3150/ 3XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6197133
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Grade WN15HD
Application Dilling, Drilling Flood Coolant
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Dia Deep 3.0XD
Included Angle 130°
Overall Len 3.1102 79.00MM
Machine Side Connection Size 0.3150 8.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Cut Dia Min 0.3150 8.00MM
Flutes/Inserts 3
Flute Length 1.1420 29.01MM
Cutter Dia 0.3150 8.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
