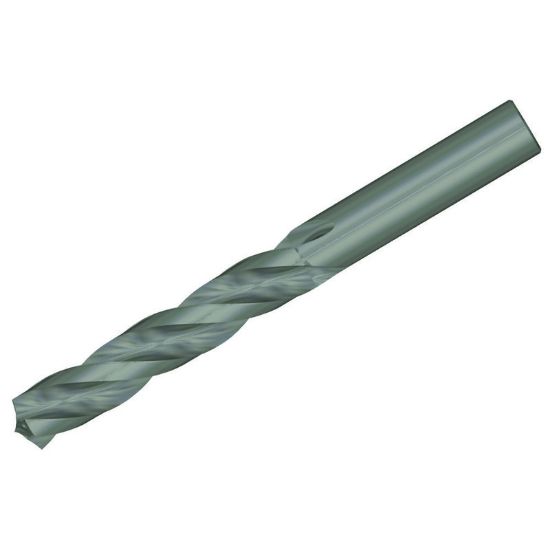

WIDIA/KENNAMETAL TDT751A04000 SC Drill 4MM/.1575/ 3XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6197131
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Made In USA No
Package Size 1
Shipping State Pennsylvania
Grade WN15HD
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Cutter Dia 0.1574 4.00MM
Flutes/Inserts 3
Flute Length 0.6690 16.99MM
Overall Len 2.5984 66.00MM
Dia Deep 3.0XD
Machine Side Connection Size 0.2362 6.00MM
Cut Dia Min 0.1574 4.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Included Angle 130°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
