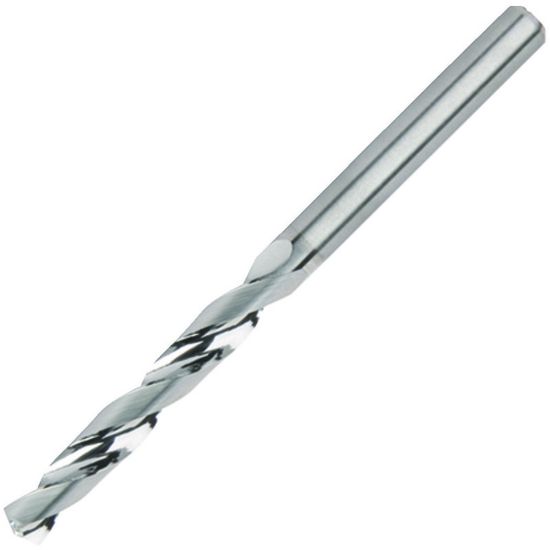

WIDIA/KENNAMETAL TDS422A14000 SC Drill 14MM/.5512/ 5XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6288611
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Drilling Thru Coolant
Made In USA No
Shipping State Pennsylvania
Grade WN15HD
Package Size 1
Dimensional Specifications
Cut Dia Max 0.5512 14.00MM
Cut Dia Min 0.5512 14.00MM
Flutes/Inserts 2
Flute Length 2.3620 59.99MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.5512 14.00MM
Included Angle 135°
Machine Side Connection Size 0.5512 14.00MM
Shank/Pilot Dia 0.5512 14.00MM
Cut Rating Aluminum, Brass, Plastic, Copper
Overall Len 4.8819 124.00MM
Dia Deep 4.0XD
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
