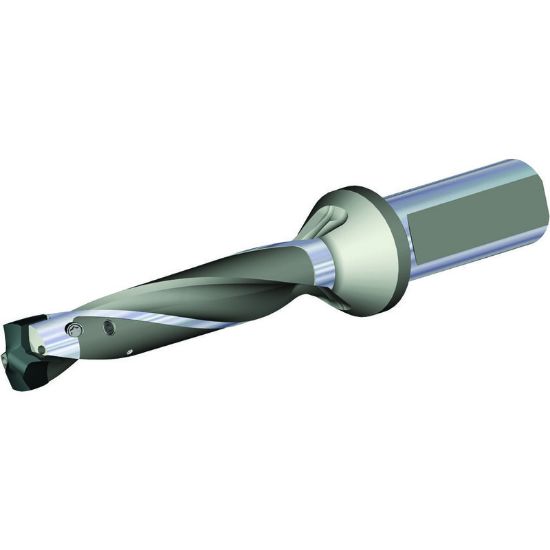

Picture of WIDIA/KENNAMETAL TDMX340R5SL40M TDMX Drill BODY D=34MM 5XD SL

WIDIA/KENNAMETAL TDMX340R5SL40M TDMX Drill BODY D=34MM 5XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572152
Delivery date: 3-5 days
$825.83

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cut Dia Min 1.3386 34.00MM
Machine Side Connection Size 1.5748 40.00MM
Overall Len 12.1654 309.00MM
Cutter Dia 1.3386 34.00MM
Machine Side Connection Type Boring Bar,Weldon
Tool Material Steel
Flute Length 7.0870 180.01MM
Cut Dia Max 1.4173 36.00MM
Dia Deep 5.0XD
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
