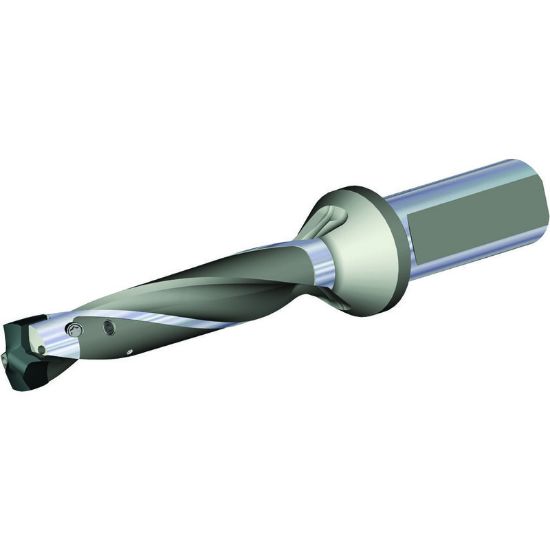

WIDIA/KENNAMETAL TDMX290R5SL32M TDMX Drill BODY D=29MM 5XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572148
Delivery date: 3-5 days
$735.32

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Pennsylvania
Application Single Insert Drilling, Drilling
Made In USA No
Dimensional Specifications
Cutter Dia 1.1417 29.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 1.1810 30.00MM
Tool Material Steel
Flute Length 5.9060 150.01MM
Dia Deep 5.0XD
Cut Dia Min 1.1417 29.00MM
Machine Side Connection Size 1.2598 32.00MM
Overall Len 10.2360 259.99MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
