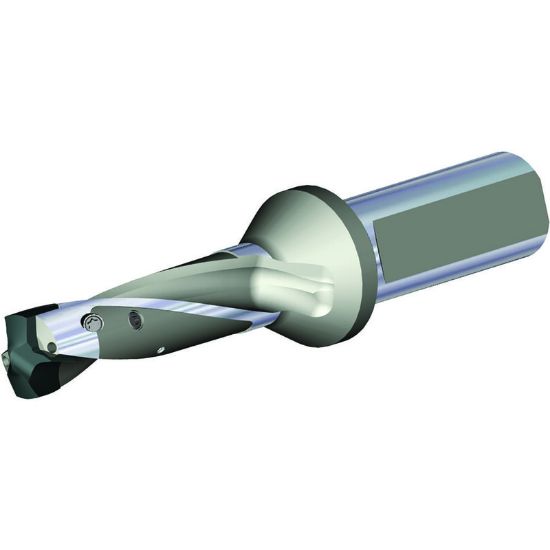

Picture of WIDIA/KENNAMETAL TDMX270R3SL32M TDMX Drill BODY D=27MM 3XD SL

WIDIA/KENNAMETAL TDMX270R3SL32M TDMX Drill BODY D=27MM 3XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572104
Delivery date: 3-5 days
$593.91

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Overall Len 7.5197 191.00MM
Cut Dia Max 1.1023 28.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flute Length 3.3070 84.00MM
Cut Dia Min 1.0630 27.00MM
Cutter Dia 1.0630 27.00MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
