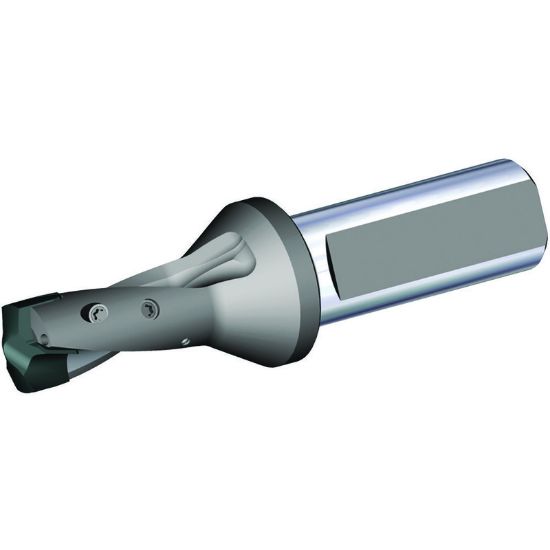

Picture of WIDIA/KENNAMETAL TDMX190R1SL25M TDMX BODY D=19MM 1XD SL Shank

WIDIA/KENNAMETAL TDMX190R1SL25M TDMX BODY D=19MM 1XD SL Shank

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6680954
Delivery date: 3-5 days
$339.39

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Package Size 1
Application Drilling, Single Insert Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 4.7638 121.00MM
Cut Dia Max 0.7874 20.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Cutter Dia 0.7480 19.00MM
Dia Deep 1.5XD
Flute Length 1.1810 30.00MM
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 0.7480 19.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
