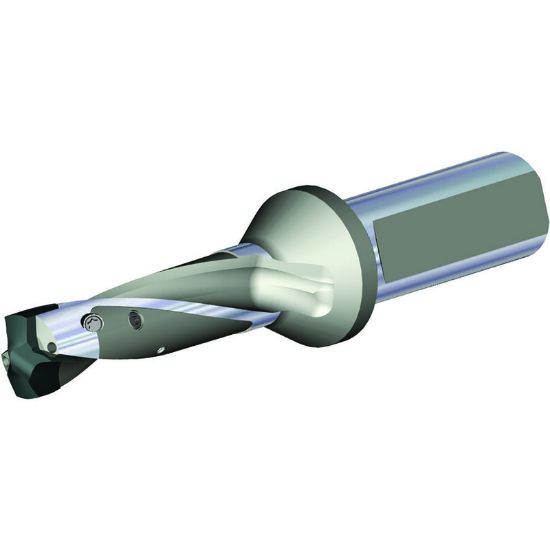

Picture of WIDIA/KENNAMETAL TDMX180R3SL25M TDMX Drill BODY D=18MM 3XD SL

WIDIA/KENNAMETAL TDMX180R3SL25M TDMX Drill BODY D=18MM 3XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572093
Delivery date: 3-5 days
$328.05

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Cutter Dia 0.7087 18.00MM
Cut Dia Min 0.7087 18.00MM
Cut Dia Max 0.7476 18.99MM
Overall Len 5.7480 146.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Flute Length 2.2440 57.00MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
