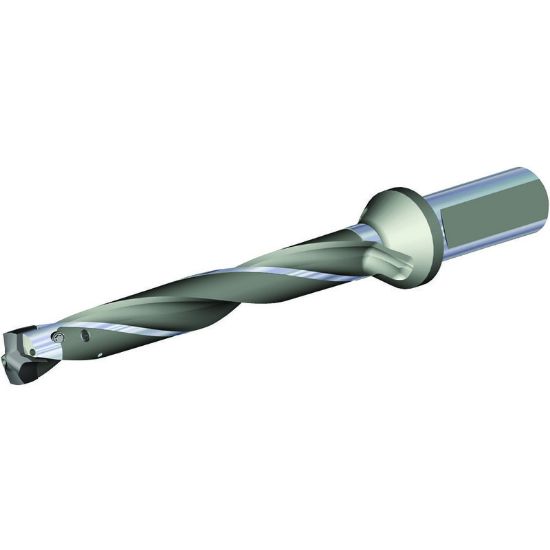

Picture of WIDIA/KENNAMETAL TDMX1260R8SL150 TDMX Drill BODY D1.260 8XD SL

WIDIA/KENNAMETAL TDMX1260R8SL150 TDMX Drill BODY D1.260 8XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572263
Delivery date: 3-5 days
$859.77

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Pennsylvania
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 1.3385 34.00MM
Flutes/Inserts 2
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flute Length 10.7090 272.01MM
Dia Deep 8.0XD
Cutter Dia 1.2598 32.00MM
Cut Dia Min 1.2598 32.00MM
Tool Material Steel
Overall Len 15.6693 398.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
