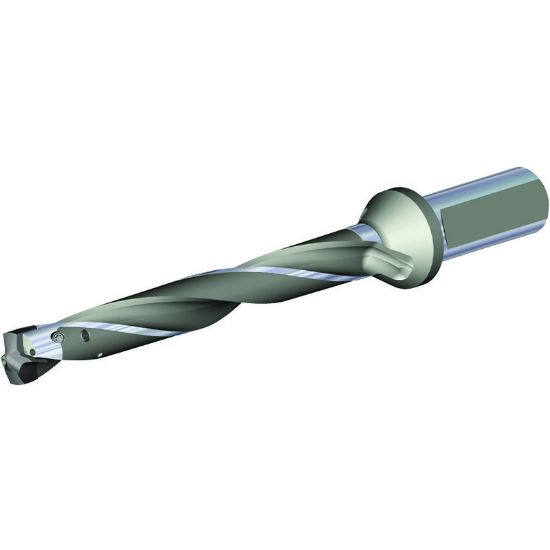

Picture of WIDIA/KENNAMETAL TDMX1182R8SL125 TDMX Drill BODY D1.182 8XD SL

WIDIA/KENNAMETAL TDMX1182R8SL125 TDMX Drill BODY D1.182 8XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572261
Delivery date: 3-5 days
$825.83

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Made In USA No
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Dia Deep 8.0XD
Flute Length 9.7640 248.01MM
Cut Dia Max 1.2204 31.00MM
Overall Len 14.1339 359.00MM
Cut Dia Min 1.1811 30.00MM
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 1.1811 30.00MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
