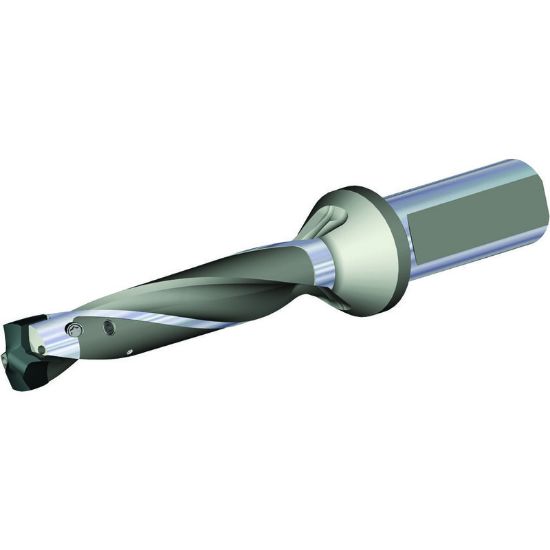

Picture of WIDIA/KENNAMETAL TDMX1182R5SL125 TDMX Drill BODY D1.182 5XD SL

WIDIA/KENNAMETAL TDMX1182R5SL125 TDMX Drill BODY D1.182 5XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572241
Delivery date: 3-5 days
$735.32

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Cut Dia Max 1.2204 31.00MM
Cut Dia Min 1.1811 30.00MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 10.4724 266.00MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flute Length 6.1020 154.99MM
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dia Deep 5.0XD
Cutter Dia 1.1811 30.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
