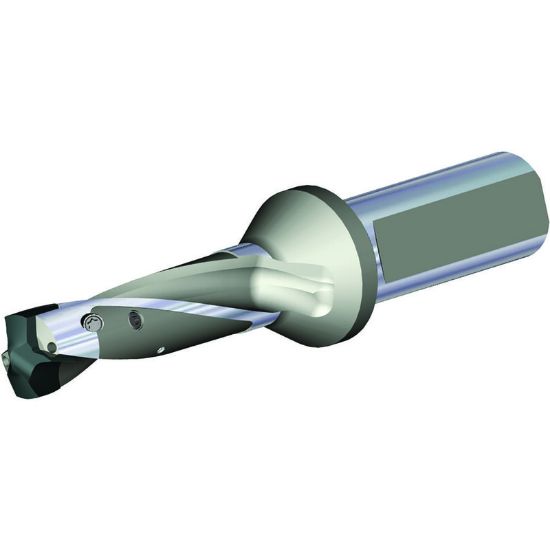

Picture of WIDIA/KENNAMETAL TDMX1182R3SL125 TDMX Drill BODY D1.182 3XD SL

WIDIA/KENNAMETAL TDMX1182R3SL125 TDMX Drill BODY D1.182 3XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572200
Delivery date: 3-5 days
$650.48

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Shipping State Pennsylvania
Made In USA No
Package Size 1
Dimensional Specifications
Tool Material Steel
Cutter Dia 1.1811 30.00MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 3.6610 92.99MM
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.1811 30.00MM
Dia Deep 3.0XD
Cut Dia Max 1.2204 31.00MM
Overall Len 8.0315 204.00MM
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
