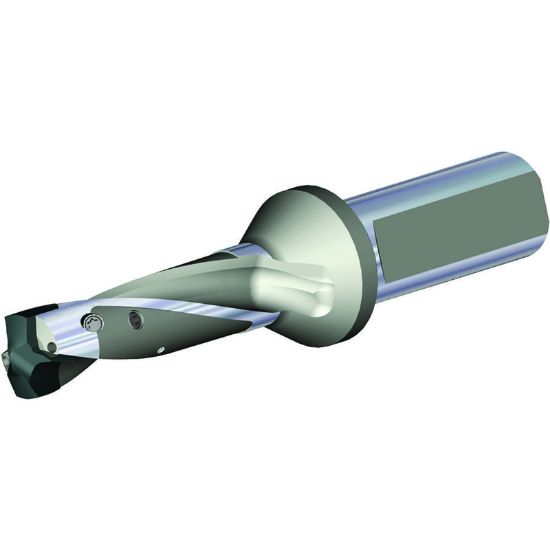

Picture of WIDIA/KENNAMETAL TDMX1142R3SL125 TDMX Drill BODY D1.142 3XD SL

WIDIA/KENNAMETAL TDMX1142R3SL125 TDMX Drill BODY D1.142 3XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572199
Delivery date: 3-5 days
$650.48

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling, Single Insert Drilling
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cut Dia Min 1.1417 29.00MM
Cutter Dia 1.1417 29.00MM
Overall Len 7.8740 200.00MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flute Length 3.5430 89.99MM
Cut Dia Max 1.1810 30.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
