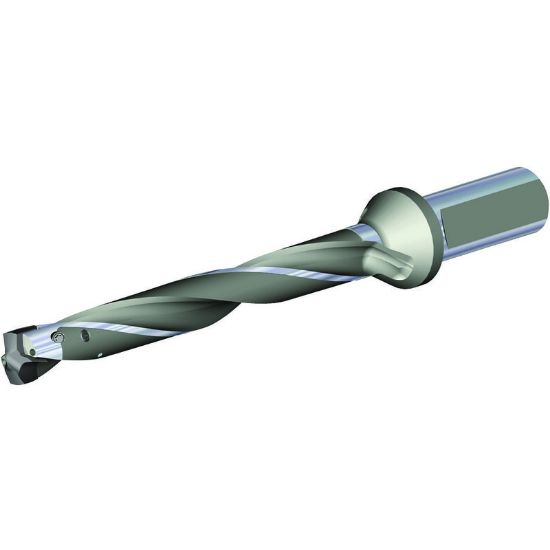

Picture of WIDIA/KENNAMETAL TDMX1063R8SL125 TDMX Drill BODY D1.063 8XD SL

WIDIA/KENNAMETAL TDMX1063R8SL125 TDMX Drill BODY D1.063 8XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572258
Delivery date: 3-5 days
$757.95

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Dia Deep 8.0XD
Cut Dia Max 1.1023 28.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 8.8190 224.00MM
Cut Dia Min 1.0630 27.00MM
Overall Len 13.0315 331.00MM
Cutter Dia 1.0630 27.00MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
