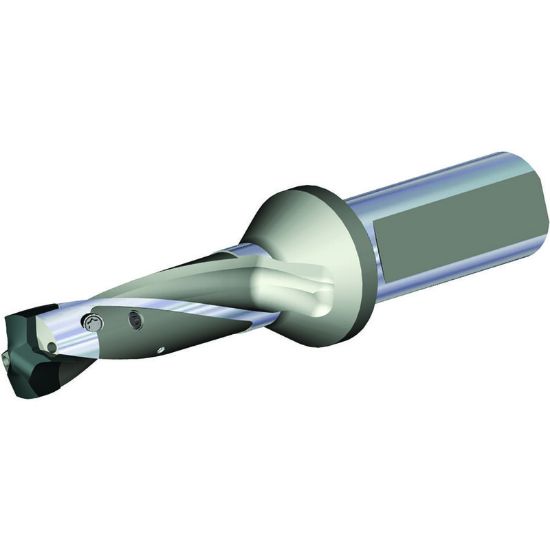

Picture of WIDIA/KENNAMETAL TDMX1024R3SL125 TDMX Drill BODY D1.024 3XD SL

WIDIA/KENNAMETAL TDMX1024R3SL125 TDMX Drill BODY D1.024 3XD SL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572196
Delivery date: 3-5 days
$537.35

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Dia Deep 3.0XD
Cutter Dia 1.0240 26.01MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 7.3228 186.00MM
Tool Material Steel
Flute Length 3.1890 81.00MM
Cut Dia Min 1.0240 26.01MM
Flutes/Inserts 2
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Max 1.0629 27.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
