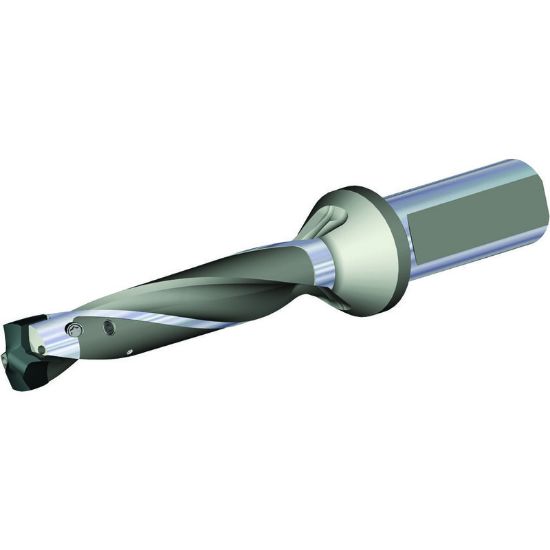

Picture of WIDIA/KENNAMETAL TDMX0985R5SL125 TDMX Drill BODY D.985 5XD SL S

WIDIA/KENNAMETAL TDMX0985R5SL125 TDMX Drill BODY D.985 5XD SL S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572236
Delivery date: 3-5 days
$610.88

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cut Dia Min 0.9843 25.00MM - 63/64
Cut Dia Max 1.0236 26.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dia Deep 5.0XD
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 0.9844 25.00MM - 63/64
Overall Len 9.2126 234.00MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 5.1180 130.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
