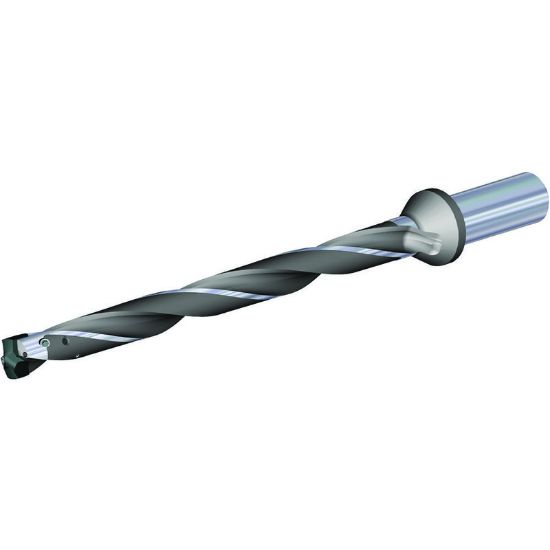

Picture of WIDIA/KENNAMETAL TDMX0906R12SF100 TDMX BODY D.906 12XD SF Shank

WIDIA/KENNAMETAL TDMX0906R12SF100 TDMX BODY D.906 12XD SF Shank

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6681005
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Shipping State Pennsylvania
Package Size 1
Made In USA No
Dimensional Specifications
Overall Len 15.1575 385.00MM
Cut Dia Max 0.9448 24.00MM
Dia Deep 12.0XD
Flute Length 11.3390 288.01MM
Cut Dia Min 0.9055 23.00MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 2
Cutter Dia 0.9055 23.00MM
Machine Side Connection Type Boring Bar,Weldon
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
