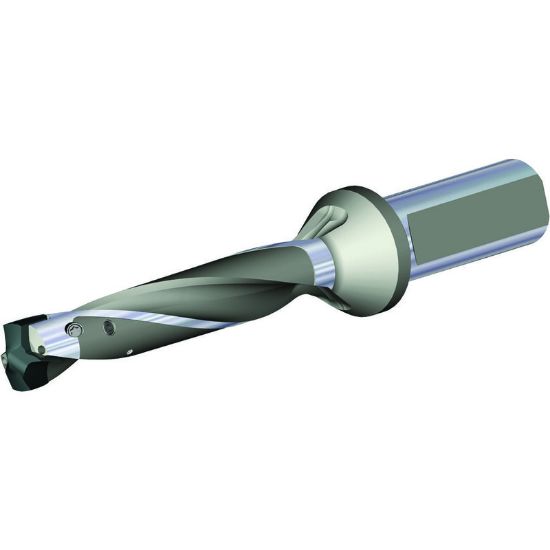

WIDIA/KENNAMETAL TDMX0630R5SL075 TDMX Drill BODY D.630 5XD SL S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6572206
Delivery date: 3-5 days
$311.09

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Min 0.6299 16.00MM
Flutes/Inserts 2
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flute Length 3.3470 85.01MM
Cut Dia Max 0.6692 16.99MM
Tool Material Steel
Cutter Dia 0.6299 16.00MM
Machine Side Connection Size 0.7500 19.05MM
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Overall Len 6.4961 165.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
