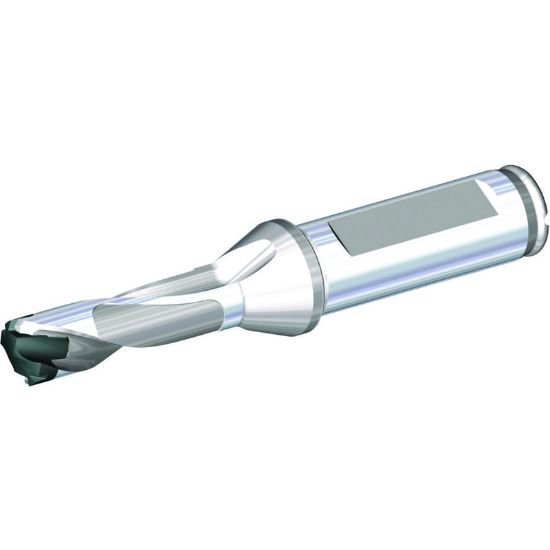

Picture of WIDIA/KENNAMETAL TDM220R3SCF25M TDM1 SCF Drill BODY 3XD D=22.0

WIDIA/KENNAMETAL TDM220R3SCF25M TDM1 SCF Drill BODY 3XD D=22.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3992071
Delivery date: 3-5 days
$462.28

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Grade WG
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Dia Deep 3.0XD
Cutter Dia 0.8661 22.00MM
Cut Dia Max 0.9051 22.99MM
Machine Side Connection Size 0.9843 25.00MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 6.2008 157.50MM
Tool Material Steel
Flute Length 2.7170 69.01MM
Cut Dia Min 0.8661 22.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
