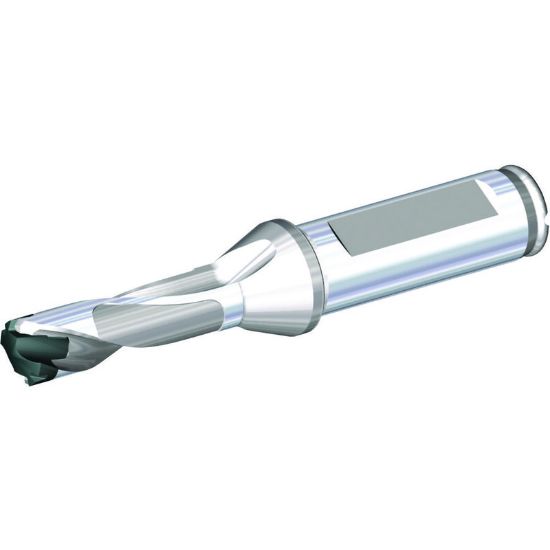

Picture of WIDIA/KENNAMETAL TDM190R3SCF25M TDM1 SCF Drill BODY 3XD D=19.0

WIDIA/KENNAMETAL TDM190R3SCF25M TDM1 SCF Drill BODY 3XD D=19.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3850950
Delivery date: 3-5 days
$400.67

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Grade WG
Package Size 1
Shipping State Pennsylvania
Made In USA No
Dimensional Specifications
Cut Dia Min 0.7480 19.00MM
Cut Dia Max 0.7870 19.99MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Overall Len 4.6500 118.11MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Cutter Dia 0.7480 19.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 2
Flute Length 2.3620 59.99MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
