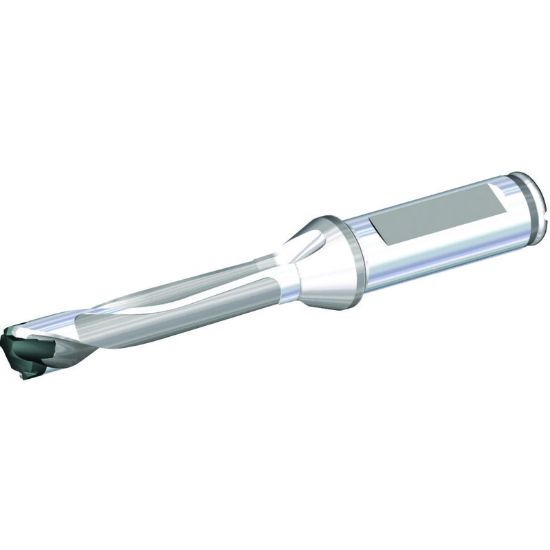

Picture of WIDIA/KENNAMETAL TDM180R5SCF25M TDM1 SCF Drill BODY 5XD D=18.0

WIDIA/KENNAMETAL TDM180R5SCF25M TDM1 SCF Drill BODY 5XD D=18.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3850949
Delivery date: 3-5 days
$393.16

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Grade WG
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Cutter Dia 0.7087 18.00MM
Overall Len 7.1063 180.50MM
Flute Length 3.7400 95.00MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 5.0XD
Cut Dia Min 0.7087 18.00MM
Cut Dia Max 0.7476 18.99MM
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
