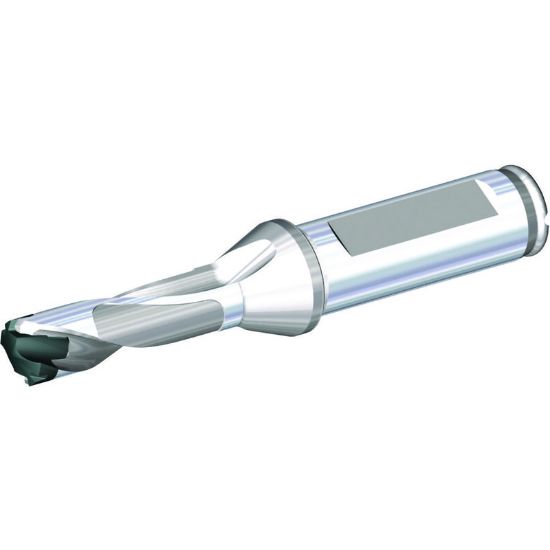

Picture of WIDIA/KENNAMETAL TDM130R3SCF16M TDM1 SCF Drill BODY 3XD D=13.0

WIDIA/KENNAMETAL TDM130R3SCF16M TDM1 SCF Drill BODY 3XD D=13.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3850934
Delivery date: 3-5 days
$265.23

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Grade WG
Made In USA No
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Tool Material Steel
Flute Length 1.5950 40.51MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutter Dia 0.5118 13.00MM
Overall Len 4.3110 109.50MM
Cut Dia Max 0.5311 13.49MM
Machine Side Connection Type Boring Bar,Weldon
Dia Deep 3.0XD
Cut Dia Min 0.5118 13.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Only registered users can write reviews
