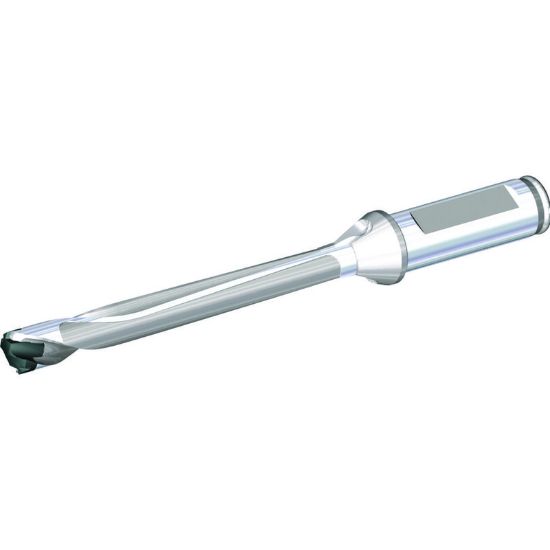

Picture of WIDIA/KENNAMETAL TDM105R8SCF16M TDM1 SCF Drill BODY

WIDIA/KENNAMETAL TDM105R8SCF16M TDM1 SCF Drill BODY

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3992216
Delivery date: 3-5 days
$319.48

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling, Single Insert Drilling
Shipping State Pennsylvania
Made In USA No
Grade WG
Dimensional Specifications
Tool Material Steel
Dia Deep 8.0XD
Cut Dia Max 0.4327 10.99MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 6.1220 155.50MM
Flutes/Inserts 2
Cut Dia Min 0.4133 10.50MM - Z
Cutter Dia 0.4133 10.50MM - Z
Flute Length 3.4650 88.01MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
