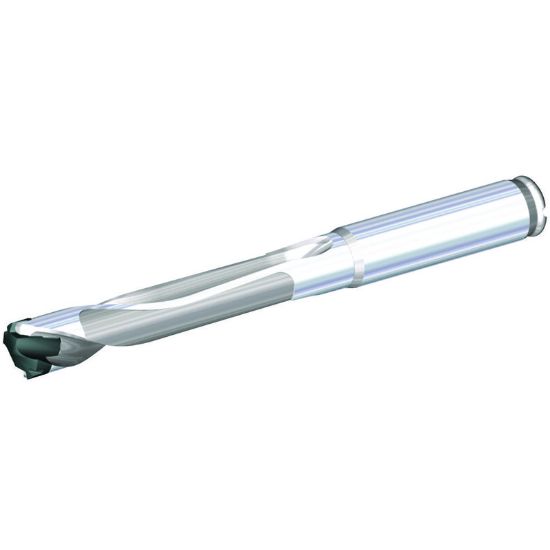

Picture of WIDIA/KENNAMETAL TDM0984R5SS100 TDM1 Drill BODY 5XD D=0.984

WIDIA/KENNAMETAL TDM0984R5SS100 TDM1 Drill BODY 5XD D=0.984

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3992507
Delivery date: 3-5 days
$590.23

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Pennsylvania
Package Size 1
Grade WG
Dimensional Specifications
Cut Dia Max 1.0232 25.99MM
Shank/Pilot Dia 1.0000 25.40MM
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Flute Length 5.1180 130.00MM
Flutes/Inserts 2
Overall Len 9.6260 244.50MM
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 0.9844 25.00MM - 63/64
Cut Dia Min 0.9843 25.00MM - 63/64
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
