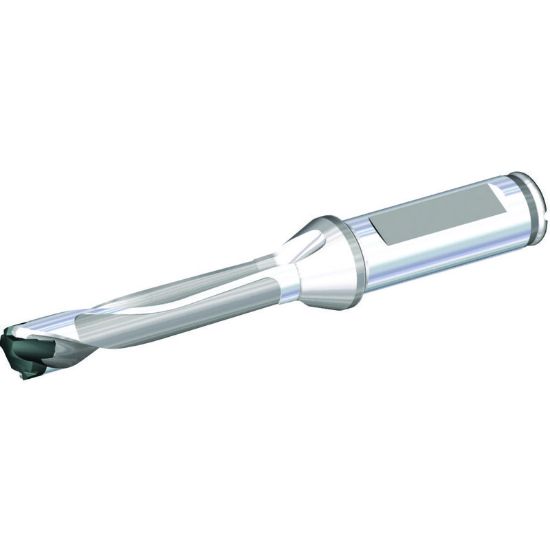

Picture of WIDIA/KENNAMETAL TDM0984R5SCF100 TDM1 Drill BODY INCH SCF 5XD D

WIDIA/KENNAMETAL TDM0984R5SCF100 TDM1 Drill BODY INCH SCF 5XD D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID4099056
Delivery date: 3-5 days
$641.53

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Grade W
Made In USA No
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Max 1.0232 25.99MM
Dia Deep 5.0XD
Overall Len 6.7500 171.45MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 5.1180 130.00MM
Flutes/Inserts 2
Cutter Dia 0.9844 25.00MM - 63/64
Cut Dia Min 0.9843 25.00MM - 63/64
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
