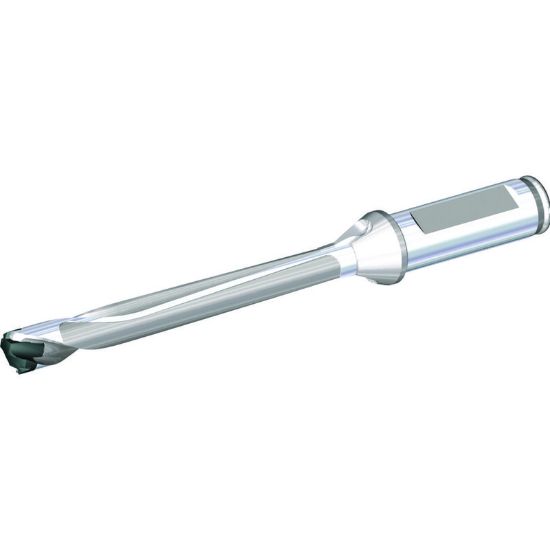

WIDIA/KENNAMETAL TDM085R8SCF12M TDM1 SCF Drill BODY 8XD D=8.50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID3992142
Delivery date: 3-5 days
$286.27

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Single Insert Drilling, Drilling
Grade WG
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Flute Length 2.8350 72.01MM
Cut Dia Min 0.3346 8.50MM
Tool Material Steel
Overall Len 5.2559 133.50MM
Dia Deep 8.0XD
Cutter Dia 0.3346 8.50MM
Machine Side Connection Type Boring Bar,Weldon
Shank/Pilot Dia 0.4724 12.00MM
Cut Dia Max 0.3539 8.99MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
